ERP

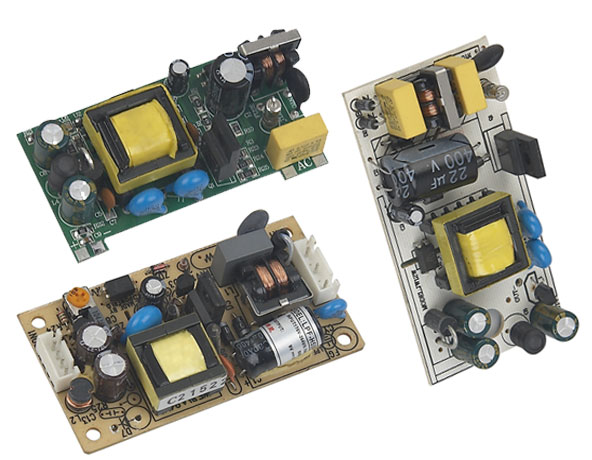

Technical parameters of 15W switching power supply adapter
Outline dimensions:
72X20X33
80x42x15
80x42x25

InputRange

90V-240V(ERP)

OutputRange

3V

3.3V

5V

6V

9V

10V

12V

15V

18V

24V

3A

2.5A

2A

2A

1.3A

1.2A

1

0.8A

0.65A

1A



Features

Mini Size makes it easy to install PCB. Good performance of anti-interference,high reliability.Good DC ripple,high working efficiency.Low operating temperature,long working life.The range of input voltage is wide,complying with the global standard.Good insulation resistance,high electrical resistance.With short circuit, overload, over voltage protection function.Full load high temperature burning machine,100% aging test.
Applications: Application of various home appliances load power supply

Can directly replace a traditional linear transformer, with low power, high efficiency. Temperature rise of small volume, light etc..

InputVoltage:AC100-240V,50/60Hz

OutputPOWER:12W

OutputVoltage:3V-4V

OverVoltageProtelion:120%min

OverCurrentProtection:120%min

ShortPmtection:AutoRecovery

LoadRegulation:±5%

WorkingEfficiency:>85%

Ripple:120mV

OperatingTemperature:0-40℃

StorageTemperature:-20-85℃

OperatingRelativeHumidity:5-95%R

WithstandingVoltage:AC3000V(Min)5mA(Max)

InsulationResistance:DC500V100MΩ(Min)
